Chrome Castor Round Cup with Threaded Bolt

1683

91,00 kr
/
Tax included. Shipping calculated at checkout.
Type

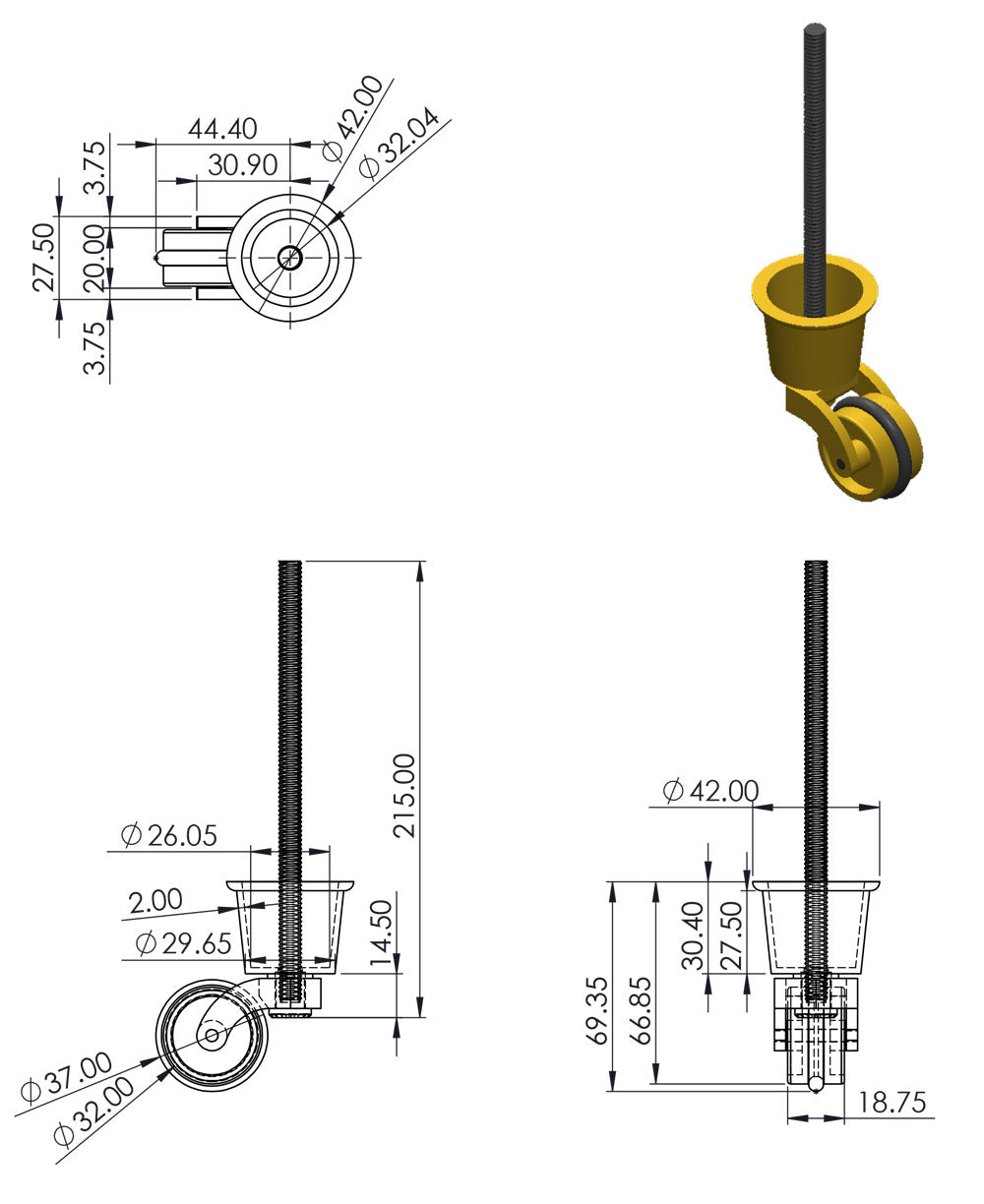

Chrome Castor with Threaded Bolt - For the Standard castor, 32mm diameter wheel, 32mm internal diameter across the top of the cup. Total height from the bottom of the wheel to the top of the cup is 66mm. Approximately 45mm of the threaded bolt passes through the wheel and cup, so for example, a 100mm threaded bolt would protrude from the top of the cup approximately 55mm. Includes a threaded bolt at the length of your choice. For the Large castor, 38mm diameter wheel, 38mm internal diameter across the top of the cup. Total height from the bottom of the wheel to the top of the cup is 80mm. Approximately 55mm of the threaded bolt passes through the wheel and cup, so for example, a 100mm threaded bolt would protrude from the top of the cup approximately 45mm. Includes a threaded bolt at the length of your choice. For the Extra Large castor, 45mm diameter wheel, 54mm internal diameter across the top of the cup. Total height from the bottom of the wheel to the top of the cup is 104mm. Approximately 75mm of the threaded bolt passes through the wheel and cup, so for example, a 100mm threaded bolt would protrude from the top of the cup approximately 25mm. Includes a threaded bolt at the length of your choice. Any length can be manufactured, please contact us if you need a different length than those shown.

Chrome Castor with Threaded Bolt. Fit to wooden furniture legs or directly to furniture for a classic finish to sofas and chairs, tables and beds. This is a quality manufactured solid brass castor with a traditional design and chrome finish, available in three sizes, standard, large and a substantial extra large size. Widely used throughout the furniture industry by furniture manufacturers, upholsterers and interior designers. It has a solid brass cup, frame and wheel. This is a heavy duty castor suitable for all applications. Sold individually. Full dimensions and specifications for the castors are at the bottom of this page.

The castors with a threaded bolt (often described as a dowel screw or hanger bolt) are used with furniture legs to make industry standard furniture legs with castors, with the bolt passing all the way through the castor, castor cup and furniture leg to create strong, quality furniture legs with castors, capable of taking heavy weights. These castors can also be fitted directly to furniture if preferred. Please select 8mm bolt in the first drop down box, or you may prefer 5/16. Any length of bolt can be made for you, but the most common lengths are shown in the second drop down box. Please contact us if you would like a bespoke length or you need advice on making furniture legs with castors. T-Nuts are included free with each castor, and alternative furniture leg fixings are available to ensure all of our European, UK and International customers can securely fit these castors.
